Laser Excitation Diversity
Up to three fully software controlled internal lasers from 405 nm – 1064 nm, minimising footprint, maximising versatility
Send us your samples, and we can measure them live in an online demonstration
Contact us to arrange an online demonstration
Laser Excitation Diversity
Dual Detector
Internal Standards
Gratings
Truly Confocal
Dedicated Team
"*" indicates required fields
"*" indicates required fields

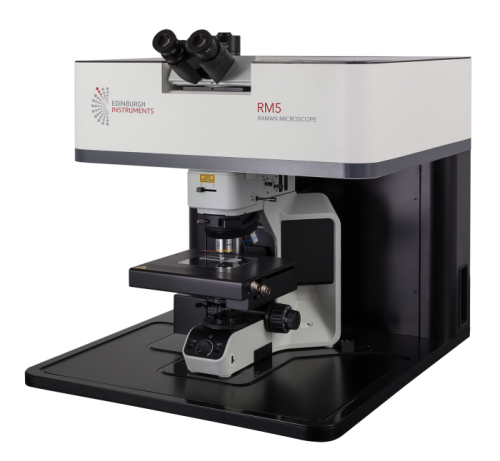

The RM5 is a compact powerhouse designed for every laboratory, from industry to academia. With advanced spectral imaging capabilities, intuitive operation, and precise confocal optics, the RM5 delivers unparalleled performance across diverse applications such as materials science, pharmaceuticals, and beyond.
Featuring a simple yet comprehensive design, the RM5 ensures ease of operation for users at any level of experience with Raman microscopy. Ramacle software guides users through all measurement stages without limiting any Raman capabilities, resulting in the creation of high-quality, publication-ready data.
Configurable with up to three fully software-controlled internal lasers spanning 405 nm – 1064 nm, this system maximises experimental range while maintaining a compact footprint. Laser selection is complimented by a 5 position grating turret, where gratings are selected to perfectly match chosen lasers. This design not only saves laboratory space but also enhances ease of use, eliminating the need for users to manually activate lasers or exchange gratings.
The RM5 enhances user experience with key features: it includes an internal silicon standard for automatic wavelength calibration, ensuring precise spectral measurements without user intervention. The confocal microscope offers the most pinhole positions available, providing flexibility for optimal measurement conditions. When integrated with a motorised stage, the software generates both 2D and 3D Raman and photoluminescence maps, along with SurfMAP® for mapping uneven samples.
This versatility allows the RM5 to seamlessly integrate into any laboratory setting, accommodating a wide range of experiments across disciplines from biologists to chemists to physicists, making Raman microscopy accessible to all.
Ramacle is an all-encompassing software package written for ease of use and complete operation of the RM5.
The software prioritises automation, reducing the need for manual adjustments and allowing users to focus more on sample analysis. From initial microscope setup, where users visualise their sample in a spacious window, to configuring laser parameters, pinhole settings, and grating selection for spectral acquisition, Ramacle handles all aspects seamlessly.
On the RM5, Ramacle comes with standard data acquisition methods such as single measurements, multiple and accumulated scans, kinetic scan, as well as a comprehensive suite of mapping techniques when upgraded to a motorised stage e.g. 2D, 3D, SurfMAP, and FastMAP. Upgrades and accessories such as temperature stages and multiwell plates unlock additional software features.
Intuitive use is at the core of Ramacle’s design. We begin by focusing your sample using the microscope setup. Once you’re satisfied with the microscope image, we can proceed to the measurement setup window. The white-light image will carry over, allowing you to click on different areas of the sample for live Raman feedback using the live option. This feature helps you verify your measurement parameters and focus. You can then take single or multiple spectra from the selected sample area.

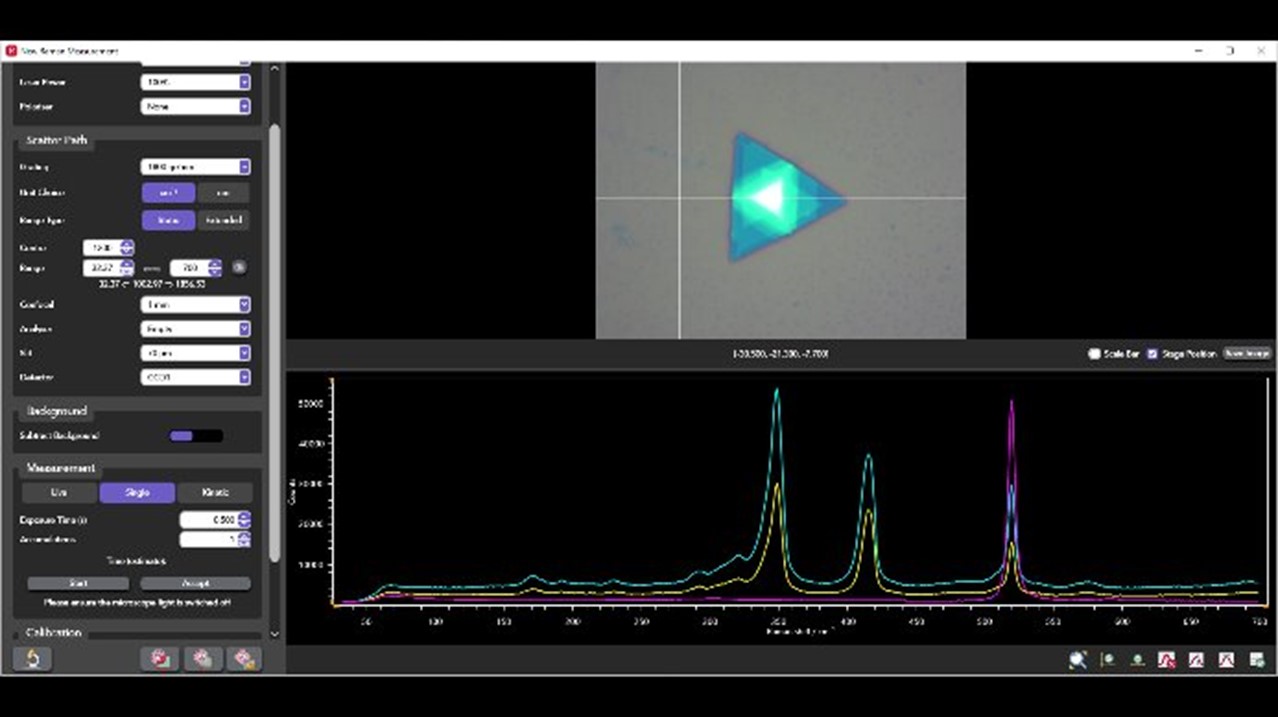

Figure 1: Ramacle Software
Additionally, kinetic series can be set up simply in Ramacle, and if using a temperature stage, temperature ramps and spectral series can also be set. The RM5 can be configured to acquire photoluminescence emission spectra. Ramacle measures spectral PL responses using the CCD camera enabling single point and mapping data to be collected. Measurements are made by selecting a low groove density grating to cover the entire emission range. The software can be operated in both wavenumber and wavelength scale making working in Raman and PL effortless.
2D mapping in Ramacle allows you to track the distribution of components in your sample. All the user needs to do is determine the area of interest to be investigated. Using Ramacle the area of interest to be mapped is defined, including areas larger than the field of view using stitched images. On the microscope image the map dimensions and step size are set for XY measurements, which will then move the stage to take a Raman spectrum from each point.
Figure 1: Raman and photoluminescence imaging of MoS2
Raman and PL imaging can be carried out on the same sample to provide complementary information, such as in 2D materials. In the example shown MoS2 is first imaged to study the Raman spectra, which indicates layer number. Then by simply changing the grating the PL emission is revealed, which can be used to measure strain across the sample.
Ramacle operates 3D mapping similarly to 2D mapping, with the added ability to define the map along the Z-axis. Thanks to the truly confocal nature of the RM5, highly resolved 3D maps can be captured. This advanced capability extends Raman mapping beyond surface analysis, constructing a detailed 3D chemical image at the micron scale.
The Ramacle software can then display the result focusing on one 2D layer, on the 2D stacks collected, or as a full volumetric. Shown below are two common examples for 3D mapping; first 3 µm polystyrene beads, and on the right we a see an inclusion in pegmatite. Green is quartz, red is anatase, and blue is an unknown inclusion.
Figure 1: 3D Mapping of polystyrene bead and pegmatite
The SurfMAP® feature of Ramacle enables the user to analyse difficult samples with rough and uneven surfaces. This is done by adjusting the Z-axis to ensure the laser remains in perfect focus across the sample surface. Without this feature non-flat surfaces cannot be accurately mapped due to variation in signal caused by the laser moving out of focus to the sample.
For example, when a pharmaceutical tablet has an indentation, a lab using Raman or PL imaging to inspect the tablet’s surface after manufacturing must account for the uneven surface.
Figure 1: Raman surface mapping of a pharmaceutical tablet.
The resulting map can be displayed in 3D showing the sample height variation and, in this example, reveals the distribution of paracetamol (blue), aspirin (coral), and caffeine (green) in the tablet.
The RM5 is built with flexibility in mind. A choice of excitation lasers and associated laser rejection filters (both edge and notch) are available depending on application requirements.
Gratings are chosen for optimum resolution for each laser excitation, with up to a maximum of five gratings per system.
A choice of CCD, EMCCD and InGaAs detectors are also available dependent on requirements, with a maximum of two detectors being integrated per system.
The RM5 uses one of the most modern microscopes on the market for first class Raman microscopy. You can use the microscope beyond pure Raman microscopy; the RM5 has been designed to maintain the full capability of the microscope allowing all the necessary tools to be added for exceptional visualisation and contrast of your samples.
Brightfield, darkfield, polarised light, differential interference contrast (DIC) and fluorescence are all available. Alongside a choice of high quality microscope objectives, a high performance camera can be added to the microscope to ensure pictures of your samples (and associated Raman maps) are captured with excellent quality and resolution.
Manual or motorised stages are available. The motorised stage allows automated XYZ Raman and fluorescence maps to be obtained and generated through Ramacle. Additional sample stages are compatible with the RM5, such as temperature stages, electrochemical cells, and diamond anvil cells.
Other accessories such as a polarisation kit and a Class I laser safety enclosure are also available to further expand the capabilities, flexibility and safety of your RM5 system.
LASER SPECIFICATION | |
---|---|
Lasers | Up to 3 narrow-band lasers including: 532 nm, 638 nm, 785 nm Other wavelengths available on request Laser selection is fully computer-controlled |
Laser Rejection Filters | Up to 3 laser rejection filters included Filter exchange is fully computer-controlled |
Laser Attenuation | 4 orders of magnitude, continuous Fully computer-controlled |
SPECTROGRAPH | ||
---|---|---|
Spectral Resolution | From <0.3 cm-1 | |
Spectral Range | <50 cm-1 – 15,000 cm-1* | |
Spectrograph | Type Focal Length Gratings Slits | Asymmetric Czerny-Turner 225 mm 5-position grating turret, fully computer-controlled Continuously adjustable, fully computer-controlled |
Confocal Imaging | Adjustable confocal pinhole, fully computer-controlled |
DETECTORS | ||
---|---|---|
Detectors | Standard Detector | High sensitivity ultra low noise CCD 1650 x 200 pixels, TE-cooled -60°C (standard) OR 2000 x 256 pixels, TE-cooled -60°C (enhanced sensitivity and spectral range) |
Optional Second Detector | EMCCD detector, InGaAs and others available on request Selection of detectors, fully computer-controlled |
SYSTEM | ||
---|---|---|
Raman Polarisation | Optional | Polarisation kit available, fully computer-controlled |
Internal Calibration | Wavelength calibration standard (Neon) Raman shift standard (Silicon) Sensitivity validation standard (Silicon) Automated laser alignment |
|
Microscope System | Functionality | Full upright microscope with brightfield and darkfield illuminator Polarisation, Differential Interference Contrast (DIC) capability and fluorescence imaging 10x and 100x objective included as standard; up to 5 can be included |
Optional Objective(s) | Trinocular eyepiece, embedded CMOS video camera, second video camera optional |
|
Sample Viewing | XY manual stage | |
Sample Stage | XYZ motorised stage (75 mm x 50 mm XY), confocal Raman mapping | |
Optional | Temperature-controlled sample stages available | |
Software | Ramacle® | Comprehensive all-in-one, intuitive software package |
Operating System | Windows® | |
Functionality | Data acquisition, spectrograph control, graphical display, data processing | |
Optional | Chemometric, spectral library packages - KnowItAllTM | |
Laser Safety | Without Laser Enclosure With Laser Enclosure | Class 3B Class 1 |
Dimensions | W x D x H † Weight † | 600 mm x 800 mm x 600 mm † 63 kg * depending on grating, laser and CCD selection † without laser enclosure |
Specifications | Spectral | Phosphorescence Lifetime | Fluorescence Lifetime |
---|---|---|---|
Mode of Operation | Single Photon Counting | Time-Resolved Single Photon Counting (Multi Channel Scaling - MCS) | Time-Correlated Single Photon Counting (TCSPC) |
Lifetime range | Milliseconds to hours | 10 ns - 50 s * | 5 ps - 10 µs * |
Sensitivity | >35,000:1 ** | n/a | n/a |
Excitation Sources | |||
Type | 450 W ozone-free xenon arc lamp | Microsecond flashlamp | Picosecond pulsed diode lasers (EPLs, HPLs) and pulsed LEDs (EPLEDs) |
Spectral Range | 230 nm- > 1000 nm | 200 nm - >1000 nm | Discrete wavelengths between 250 nm - 980 nm |
Pulse width | n/a | 1 µs - 2 µs | from 60 ps |
Options | Ozone generating lamp with spectral range 200 nm - >1000 nm | Low to medium repetition rate pulsed lasers. Variable pulse width VPL and VPLEDs | Nanosecond flashlamp 200 nm - >400 nm pulse width <1 ns |
* source and detector dependent ** standard water Raman measurement conditions: Excitation wavelength = 350 nm, Excitation and emission bandwidths = 5 nm, step size = 1 nm, integration time = 1 s, emission wavelength = 397 nm, noise measured at 450 nm and calculation based on the SQRT method |
Monochromator | Specifications |
---|---|
Type | Czerny-Turner with 'plug and play' triple grating turret |
Focal Length | 325 mm (double monochromators: 2 x 325 mm) |
Stray Light Rejection | 1:10-5 (single), 1:10-10 (double) |
Gratings | Mounted to triple grating turret |
Accuracy | +/- 0.2 nm * |
Minimum Step Size | 0.01 nm * |
Option | Spectrographs available for operations of CCDs and diode array detectors |
* grating dependent |
Detectors | PMT-900 | PMT-1010 | PMT- 1400/1700 | HS-PMT | MCP-PMT | HS-HPD |
---|---|---|---|---|---|---|
Spectral Range | <200 nm - 870 nm | <200 nm - 1010 nm | 500 nm - 1700 nm | <230 nm - 850 nm | <200 nm - 850 nm | 220 nm - 870 nm |
Dark Count Rate | <50 cps (-20 °C) | <200 cps (-20 °C) | <20 kcps or <200 kps | <150 cps (0 °C) | <10 cps (-20 °C) | <200 cps (10 °C) |
Reponse Width | 600 ps | 800 ps | 400 ps or 800 ps | 180 ps | <25 ps | 20 ps |
Options | A wide variety of other photomultipliers and analogue detectors are available up to 5,500 nm |
