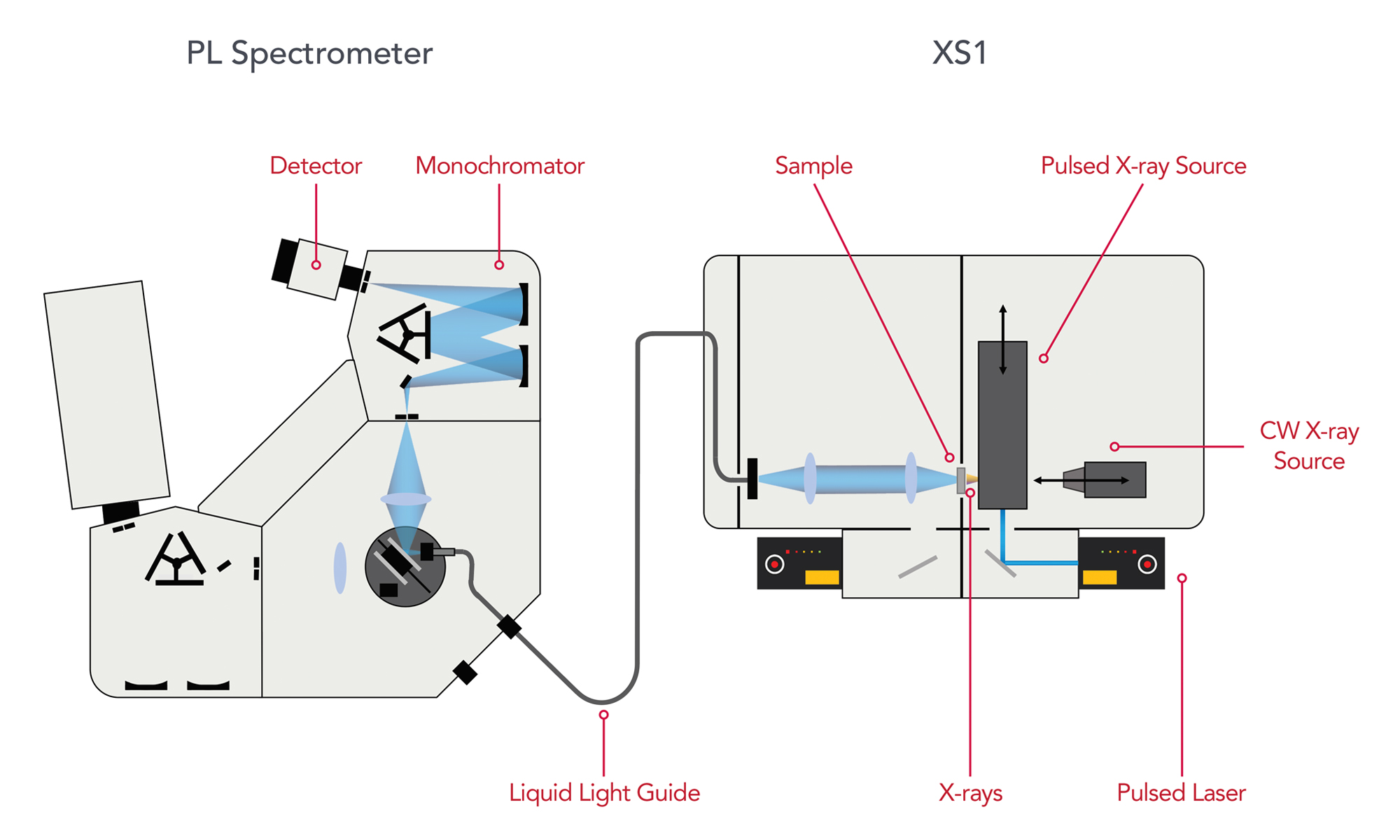

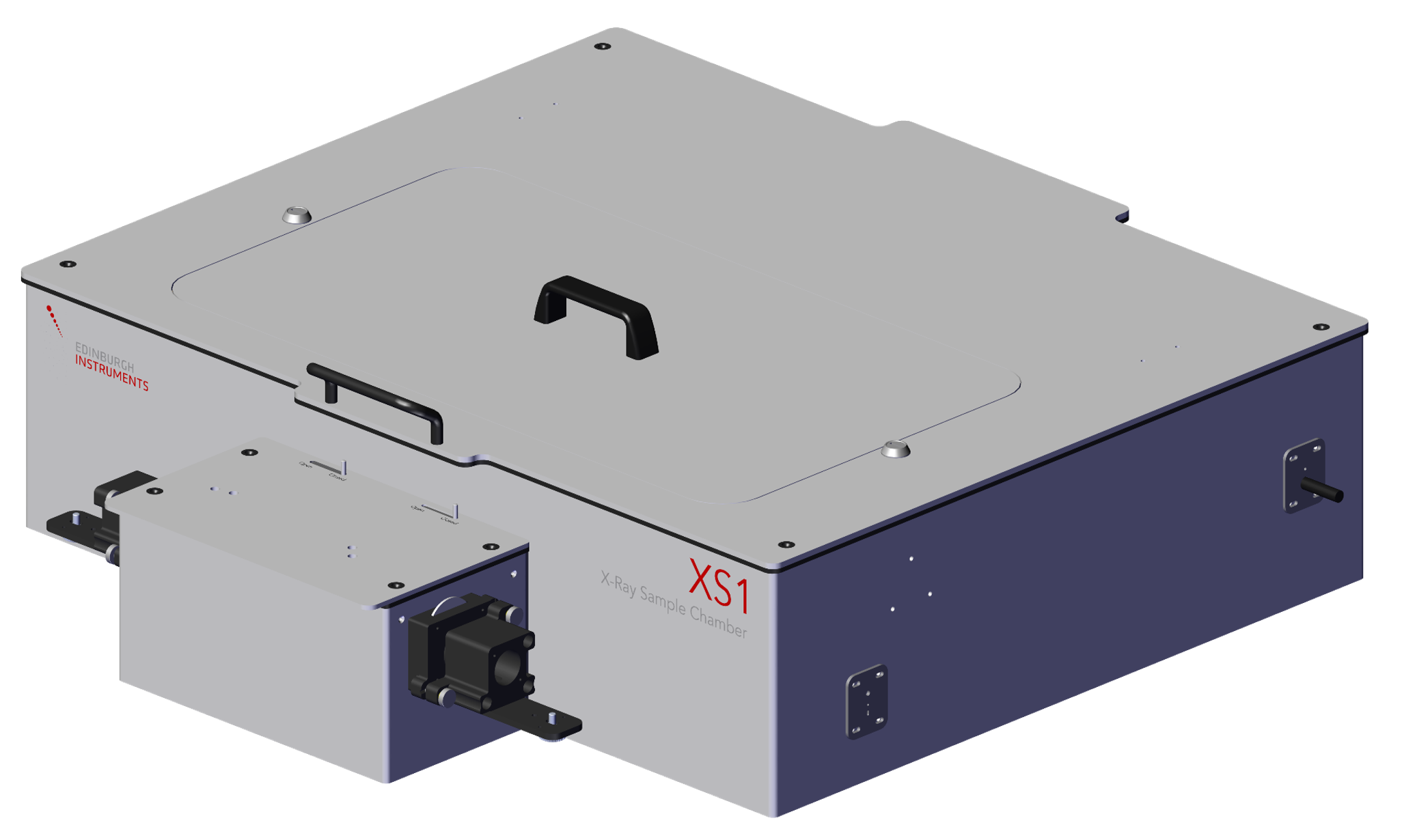

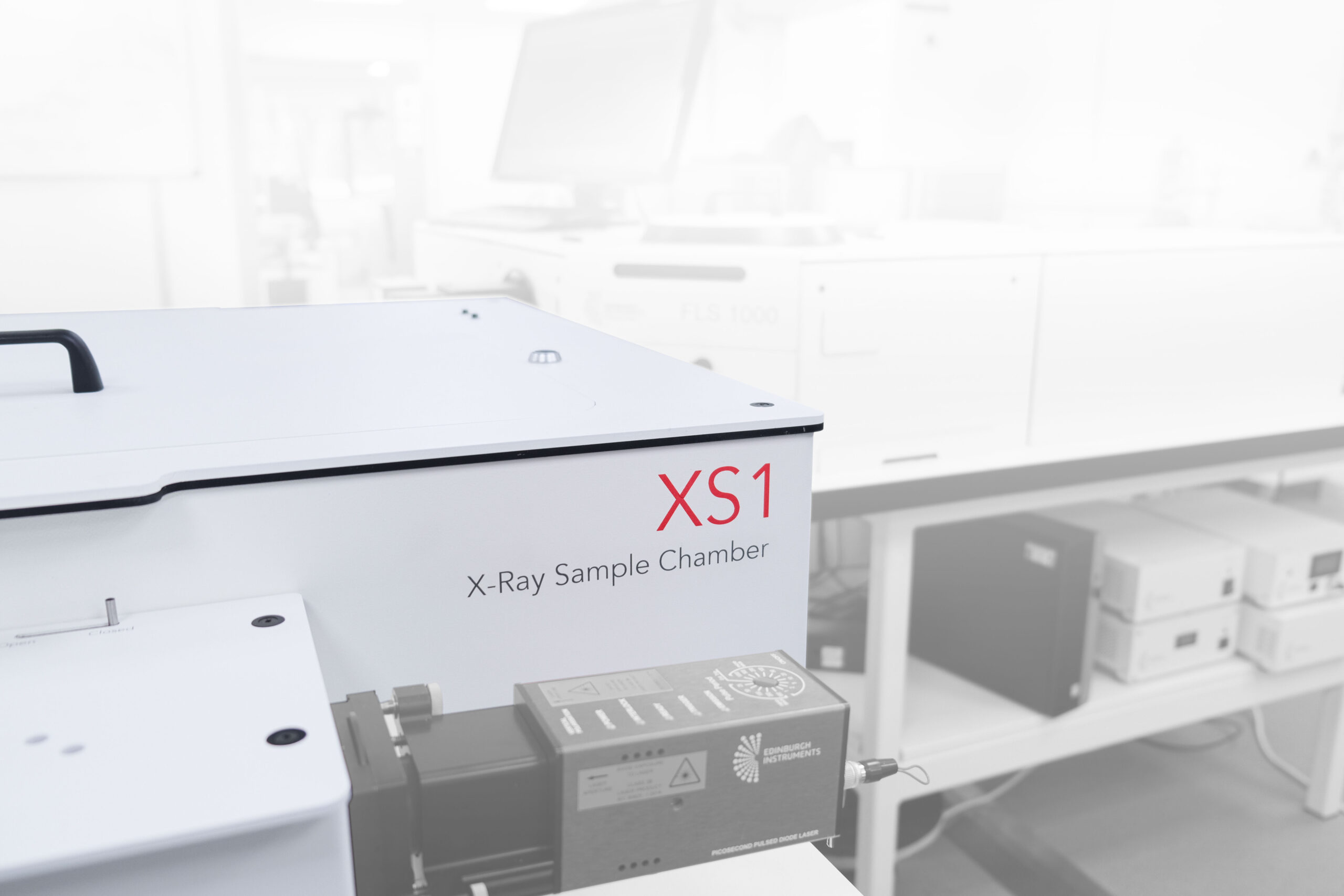

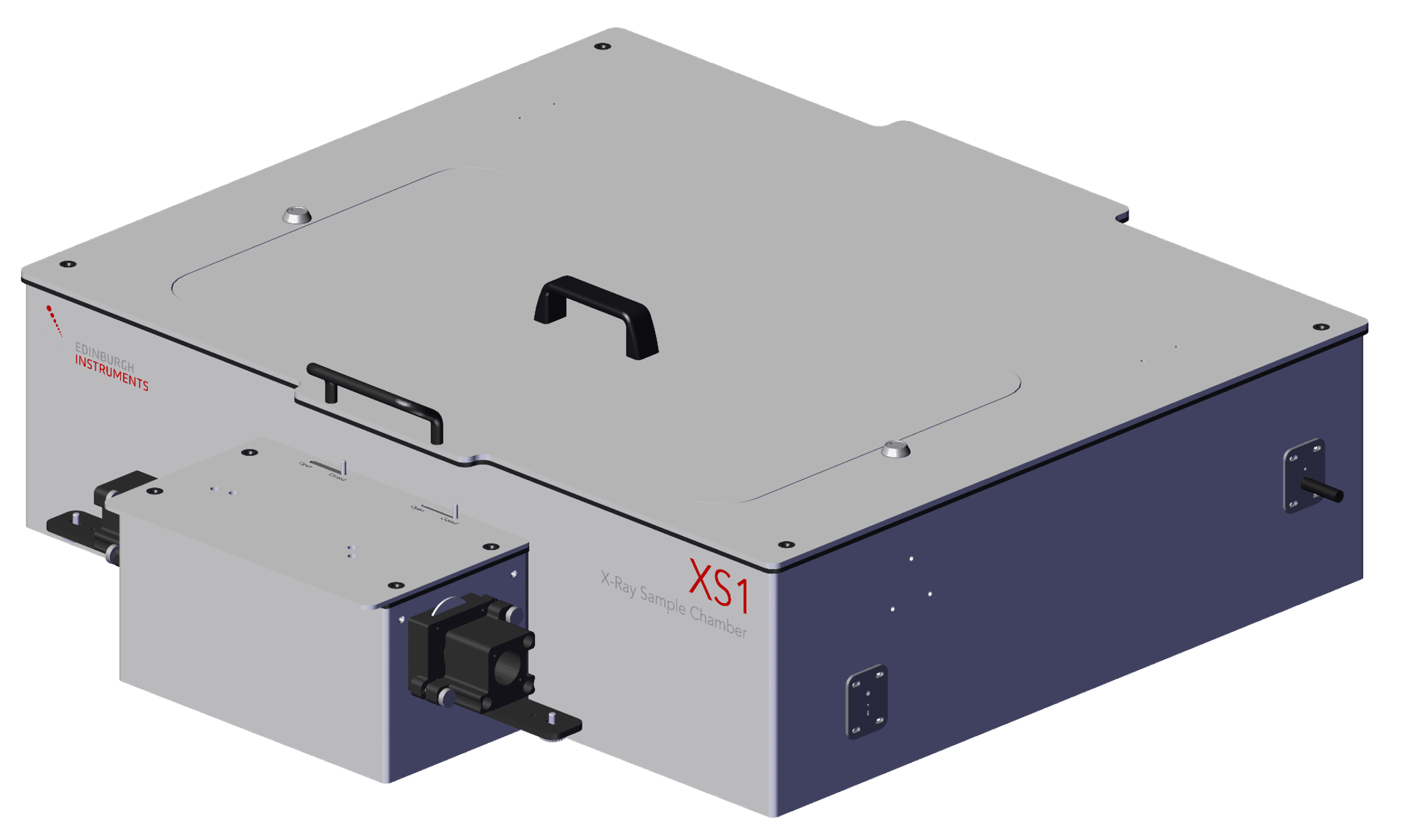

The XS1 is your ultimate accessory for radioluminescence studies of scintillators. Designed to pair with the FLS1000 or FS5 photoluminescence (PL) spectrometers, the x-ray sample chamber connects via a liquid light guide. When x-rays excite your sample, it emits UV, visible, or NIR radiation, detected by the spectrometer.
With the flexibility to switch between two x-ray sources—a continuous (CW) source for spectral measurements and a pulsed source for time-resolved radioluminescence with ~100 ps resolution. The pulsed source is tiggered using an Edinburgh Instruments laser diode.
The XS1 includes versatile sample holders for powders, solutions, slides, and crystals, making it suitable for a wide range of applications. For added safety, it comes equipped with a double-lid interlock while maintaining compatibility with standard PL spectrometer operations.
| Operating Modes | MCS* TCSPC* *Depending on spectrometer configuration | Steady state |
| Target Material | W | W, Rh, Ag |
| HV Potential | 40 kV | 4 kV – 60 kV |
| Beam Current | Recommended 10 μA Maximum 50 μA | 5 µA – 1000 µA |
| Minimum Pulse Duration | 100 ps ((source dependent) ) | N/A |
| Maximum CW Power | N/A | 12 W |
| Dimensions | 942 x 915 x 225 mm | 942 x 693 x 225 mm |
| Weight | 119 Kg | 105 Kg |
| Emission Spectral Range | 300 nm – 650 nm, 340 nm – 800 nm, and/or 420 nm – 2000 nm (liquid light guide dependent) |
|
| Operating temperature | 15˚C – 30˚C | |
