Sample Options
Easy to exchange sample holders for solids, liquids, microcuvettes, and temperature control
Menu
Send us your samples, and we can measure them live in an online demonstration
Contact us to arrange an online demonstration
Sample Options
Light Sources
Compact Design
Dual Beam
Variable Bandpass

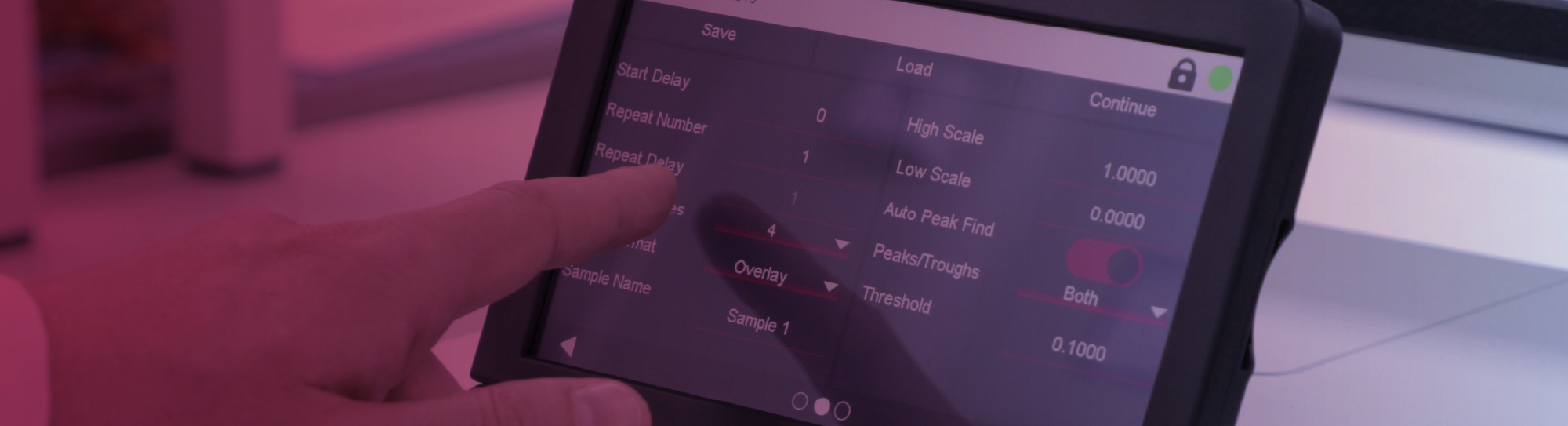

7” Touchscreen
As standard, the DS5 comes with a touchscreen for standalone operation controlling all modes of operation: photometry, time scan, wavelength scan, and data analysis including calibration curves.
Additionally, Visacle® PC-controlled software enhances your DS5 experience by offering comprehensive control, validation, data analysis, and reporting—all in one streamlined package. With Visacle, your data is securely stored in an organised database, ready for analysis and easy export in .txt, .csv, or PDF formats.
For those needing extra security, Visacle is available as a CFR Part 11 compliant package. Key features include:
Figure 1: Visacle Project Browser
Figure 2: Visacle Project Managment
The DS5 covers the UV range down to 190 nm with an absorbance range > 3.
This makes measuring samples high UV absorption possible, such as the edible oil spectra plotted below.
Figure 1: UV absorption spectra of heat-treated extra virgin olive oil, blended oil, virgin olive oil, extra virgin olive oil, and pomace oil; measured in a standard DS5 dual spectrophotometer.
The standard cell holder is two-position and holds traditional 10 mm path length cells. A micro-volume cell holder option for 50 μl cells is also available.
Designed for incubation or temperature stabilisation from room temperature to +40°C. Temperature stability ±0.3°C.
Designed for low concentrations or absorbance, the long path cell holder holds two rectangular cells with an optical path length of 10 mm to 100 mm.
Designed for measuring the transmittance/absorbance of glass samples or filters. Sample dimensions up to 55 mm x 100 mm with 5 mm thickness can be accepted.
Designed for measuring the transmittance/absorbance of thin-film samples. Sample dimensions up to 25 mm x 50 mm can be measured.
Mount up to six standard 10 mm path length cells with auto-changeover of sample. A temperature controlled version is also available.
Designed for rapid and automatic measurement of multiple or large amounts of liquid sample without changing cells.
Designed for continuous measurement of trace samples. Flow cell capacity of 70 μl, 10 mm path length with Teflon tubing.
| Parameter | Description |
|---|---|
| Optics | Czerny-Turner, Dual Beam Monochromator |
| Wavelength Range | 190 nm - 1100 nm |
| Spectral Bandwidth | 0.5 nm, 1 nm, 1.5 nm, 2 nm and 4 nm |
| Stray Light | ≤0.10% T (220 nm NaI, 340 nm NaNO2) |
| Wavelength Accuracy | ±0.1 nm |
| Wavelength Repeatability | ±0.1 nm |
| Photometric Range | Absorbance: -3.4 to +3.4, %T: 0 to 300, Concentration: 0,000 to 9,999 |
| Photometric Accuracy | ±0.002 Abs (0 - 0.5 Abs), ±0.004 Abs (0.5 - 1.0 Abs), ±0.008 Abs (1.0 - 2.0 Abs) |
| Photometric Reproducibility | ±0.0003 Abs (0-0.5 Abs), ±0.0005 Abs (0.5-1 Abs), ±0.001 Abs (1.0-2 Abs) |
| Wavelength Scan Speed | 10, 100, 200, 400, 800, 1200, 2400, 3600, 6000 nm/min |
| RMS Noise | ≤0.00003 Abs (0 Abs, 500nm) |
| Baseline Stability | <0.0003 Abs/hr (500 nm, 2 hour lamp warm-up period) |
| Baseline Flatness | ±0.0009 Abs (200 nm - 950 nm) |
| Light Source | Tungsten-Halogen and Deuterium Lamps |
| Light Source Switching | Automatic switching selectable for 325 nm - 370 nm range |
| Detector | Silicon Photodiode |
| Display | 7” Touchscreen |
| Software | Touchscreen operation, PC-controlled software or CFR compliant PC-controlled software |
| Dimensions | 500 mm (W) × 475 mm (D) × 250 mm (H) |
| Net Weight | 20 Kg (approx) |
| Power Supply | 100 - 240V, 50/60 Hz, 150VA |
| Ambient Temperature | 10°C - 35°C |
| Output Device | USB flash drive, SD card |
| Interface | USB PC interface |
